Authentic sound for classic cars and modern vehicles

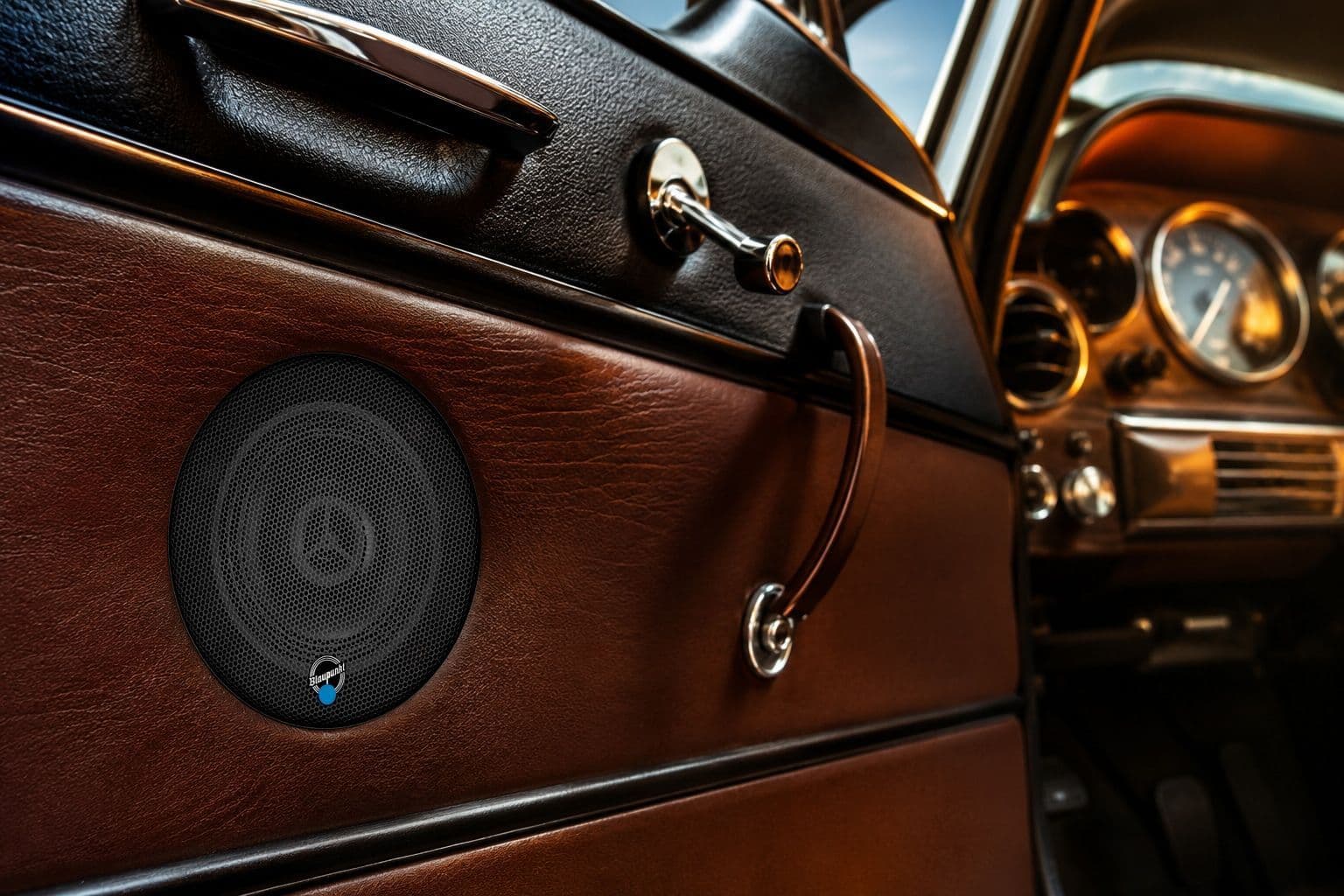

Classic vehicle design and modern loudspeaker technology do not have to be a contradiction. With the new CLASSIC series, Blaupunkt presents a loudspeaker family that is not only tailored to the needs of vintage and classic car owners: the sophisticated speakers also ensure good sound in younger vehicle models. The five loudspeaker systems combine contemporary audio technology with a deliberately understated appearance and fit harmoniously into vehicle interiors.

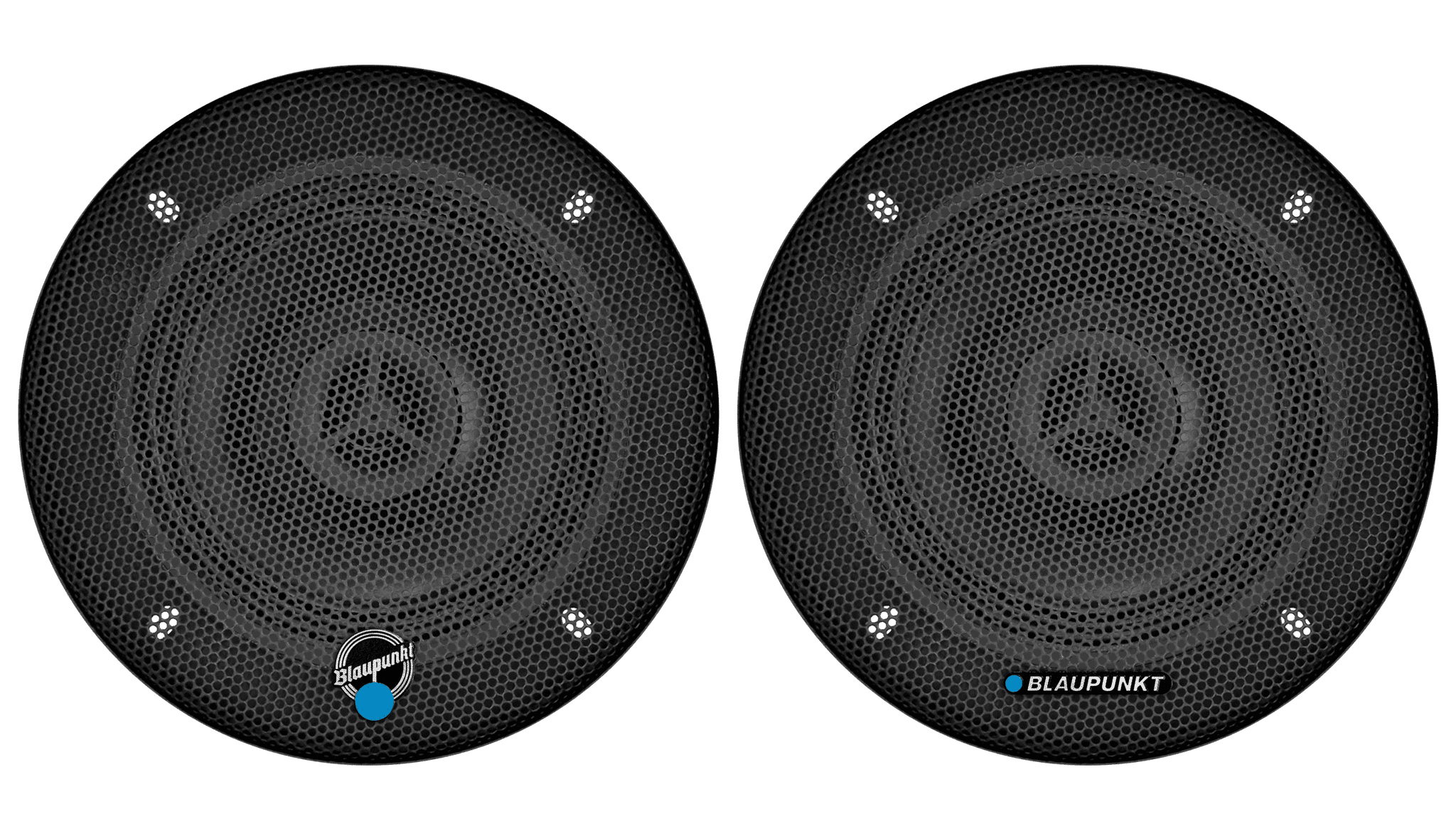

Additional customization is possible with the included speaker grilles, which can either be decorated with a modern Blaupunkt logo or a retro logo. If you place particular value on originality, you can also install the speakers without a cover. This means the look can be optimally adapted to the vehicle and personal taste.
Space is often limited, especially with historic vehicles. Thanks to powerful neodymium magnets, Blaupunkt was able to significantly reduce the installation depths. This means that the systems can be retrofitted into many vehicles without making any changes to the body or interior.

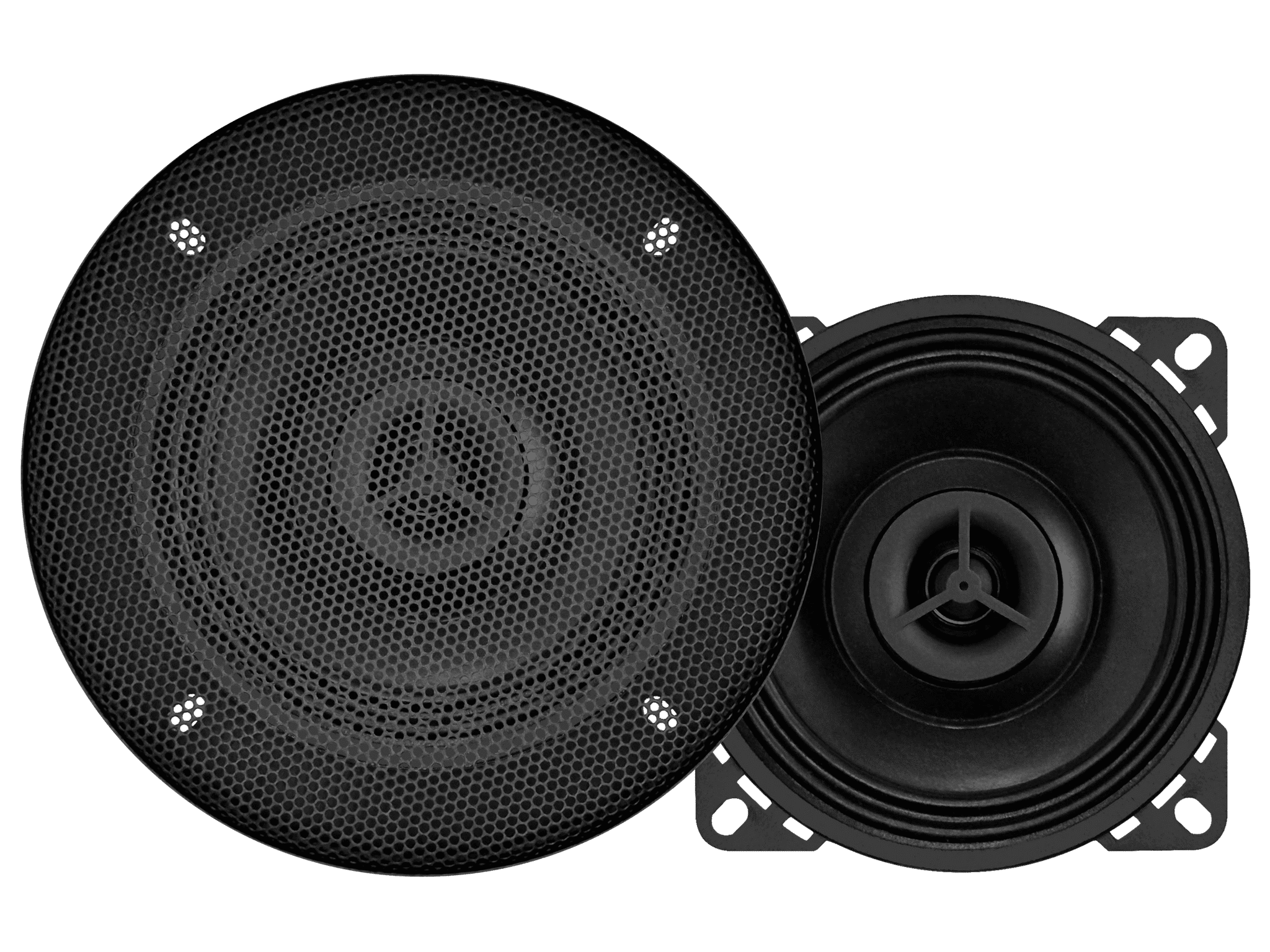

CLASSIC 100 Cx
High quality and with a shallow mounting depth,
suitable for classic cars and modern vehicles.
• 2-way coaxial loudspeaker
• 100 mm / 4" diameter

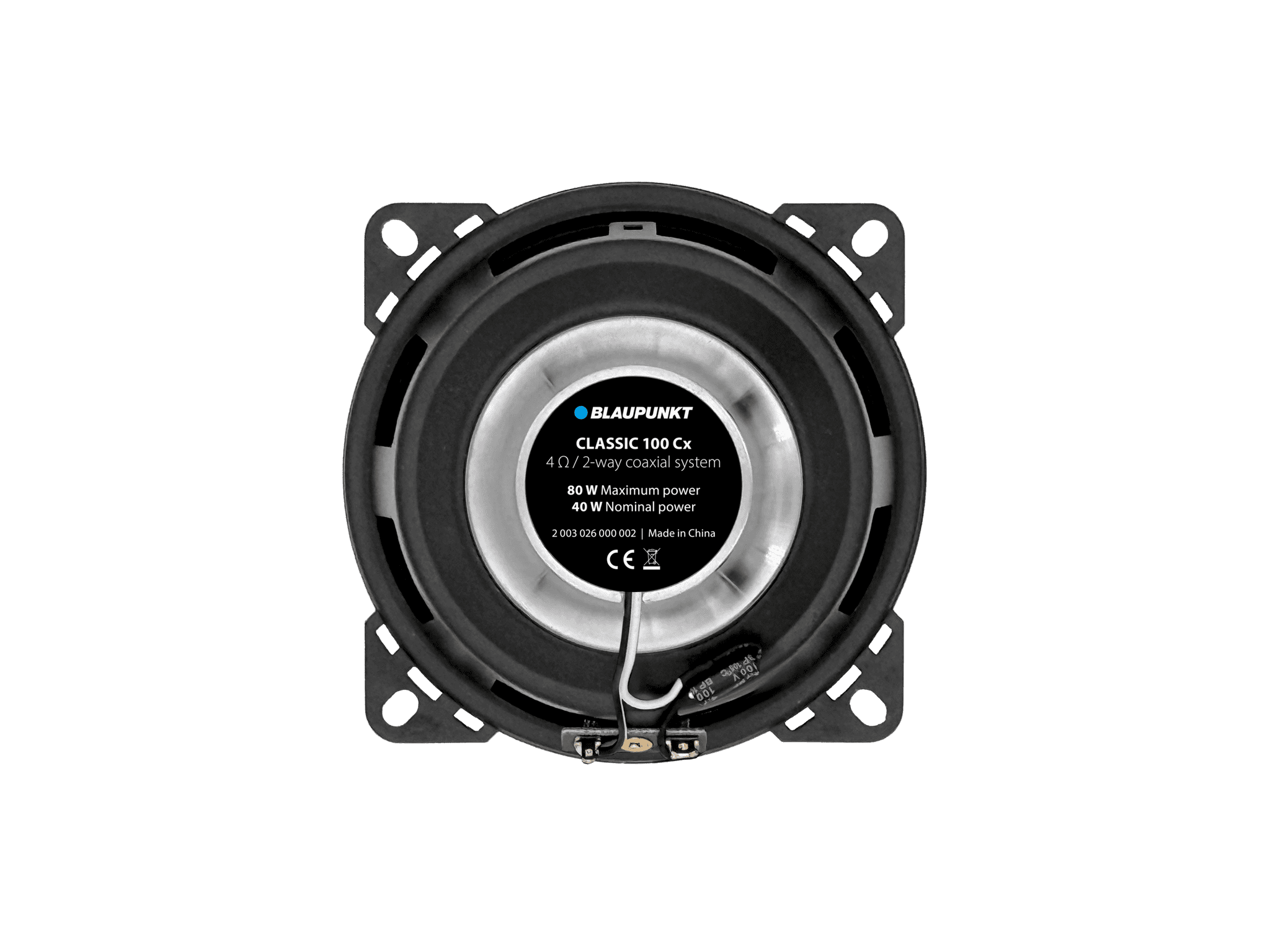

• Neodymium magnet
• 80 watts power handling (max. power)
• 40 watts nominal power handling
• Coated cellulose membrane
• Rubber surround
• Gold-plated connectors
• 34.7 mm / 1.37" mounting depth
• Metal grill can be fitted with either a modern or retro logo
• Classic pure black design
• Scope of delivery: Including designer grill, 3 m cable, mounting material and installation instructions
Technical specifications
| Product | CLASSIC 100 Cx | |
| System | 2-Way Coaxial | |
| Diameter | 100 mm / 4" | |
| Maximum power handling | 80 Watt | |
| Nominal power handling | 40 Watt | |
| Nominal impedance | 4 Ohm | |
| Frequency response | 98 – 20,000 Hz | |
| Efficiency (2.83 V/1 m) | 88 dB | |
| Woofer | Concept | Single cone |
| Cone material | Coated Cellulose | |
| Cone color | Black | |
| Surround material/color | Rubber / Black | |
| Voice coil diameter/material | 35.5 mm / 1.4" / Kapton | |
| Voice coil layers | 2 | |
| Basket material/color | Steel / Black | |
| Magnet material | Neodymium | |
| Magnet size | 36 x 6 x 6 mm / 28 x 6 x 3 mm | |
| Connectors | 2.8/4.8 mm | |
| Tweeter | Concept | Dome tweeter |
| Diameter | 13 mm / 0.5" | |
| Cone material | Mylar | |
| Voice coil diameter/material | 13 mm / 0.5" / Kapton | |
| Voice coil layers | 2 | |
| Magnet material | Neodymium | |
| Magnet size | 12.5 x 2 mm | |
| Speaker cover | Cover material/color | ABS / Black |
| Grille material/color | Metal / Black | |
| Installation depth | 34.7 mm / 1.37" | |
| Diameter installation hole | 94 mm / 3.7" | |
| Weight (single speaker without cover) | 0.84 kg | |
| Delivery content | 2x Speakers | |
| 2x Design grilles | ||
| 2x Speaker cables 3 m | ||
| 8x Fixation screws | ||
| 8x Pirate nuts | ||
| 2x Vintage logo | ||
| 2x Modern logo | ||
| 2x Solid adhesive | ||
| User manual | ||
| Cutting template (printed on the color box) | ||
| Packing concept | 4-color gift box | |
| No. of products in packing | 1 pair / 2 pcs | |
| Condition: | New |
