PAIR OF NEW 4'' 10CM COAXIAL 2 WAY GERMAN HIGH QUALITY LOUDSPEAKERS. IDEAL FOR THAT PERFECT RESTORATION THIS REPLACES YOUR WORN OUT FACTORY SPEAKER OR FITS EXACTLY IN THE CUTOUT WHERE NO SPEAKER WAS FACTORY SPECIFIED.

LOW IMPEDANCE.  A PERFECT UPGRADE OR REPLACEMENT.

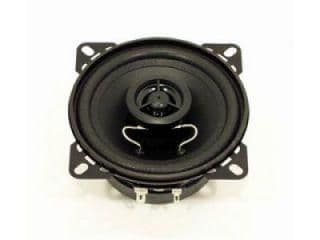

10 cm (4") 2-way coaxial loudspeaker with standard basket. Integrated crossover (capacitor) for the tweeter. Straightforward installation in vehicles with cutouts for 10 cm speakers. Waterproof PP-cone.

Typical applications

  • Vehicles

Attributes

  • Waterproof cone
  • Metal basket
  • Coaxial speaker

  • Product Specifications

    Title Value
    Rated power 40 W
    Maximum power 70 W
    Nominal impedance Z 4 Ohm
    Frequency response 70–22000 Hz
    Mean sound pressure level 84 dB (1 W/1 m)

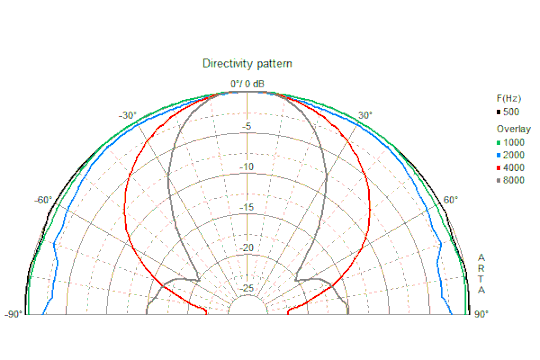

    Opening angle (-6 dB) 88°/4000 Hz
    Excursion limit +/−2 mm
    Resonance frequency fs 110 Hz
    Height of front pole-plate 3 mm
    Voice coil diameter 25 mm
    Height of winding 6 mm

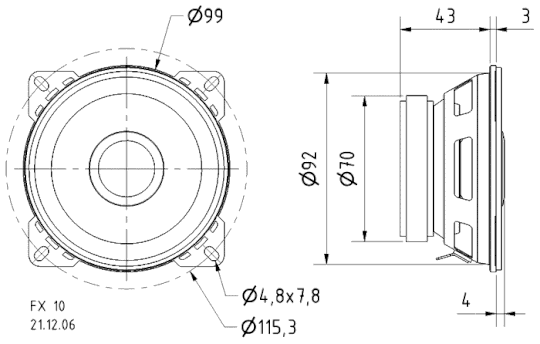

    Cutout diameter 93 mm
    Net weight 0.4 kg
    Connections 4.8 x 0.8 mm (+)2.8 x 0.8 mm (−)
    Temperature range –25 ... 70 °C
Condition: New
