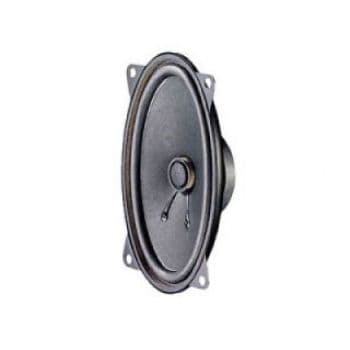

1x OVAL LOUDSPEAKER 6" X 4" 150MM X 100MM - DOOR, SHELF & UNIVERSAL
NEW 4 ohm 30w SLIM FULL RANGE OVAL LOUDSPEAKER 4OHM, IDEAL FOR DOOR CARD FITMENT OR WHERE SPACE IS AT A PREMIUM.. THESE UNIVERSAL SPEAKERS ARE PERFECT FOR CARS FROM THE 60S TO 70S. CAN BE MOUNTED IN THE FRONT/REAR DOOR CARDS, REAR PARCEL SHELF OR ANYWHERE THAT HAS LIMITED DEPTH LIKE THE CENTRE CONSOLE ON AN ETYPE JAGUAR.
| Technical Data: |
| Rated power |
15 W |
| Maximum power |
30 W |
| Nominal impedance Z |
4 Ohm |
| Frequency response |
75–16000 Hz |
| Mean sound pressure level |
85 dB (1 W/1 m) |
| Maximum cone displacement |
3 mm |
| Resonance frequency fs |
120 Hz |
| Magnetic induction |
0,9 T |
| Magnetic flux |
170 µWb |
| Height of front pole-plate |
3 mm |
| Voice coil diameter |
20 mm |
| Height of winding |
5 mm |
| Cutout diameter |
146 x 87 mm (oval) |
